GX5 Hydraulic System

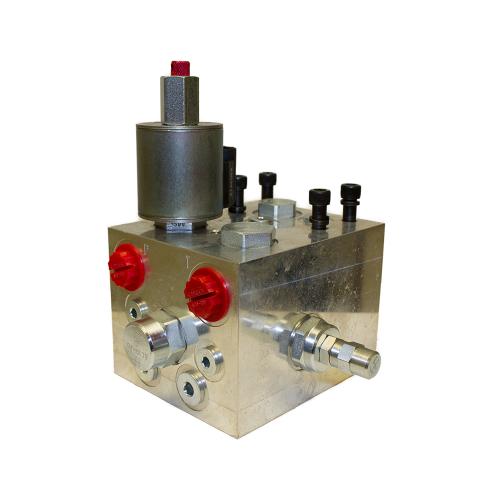

The AgXcel GX5 PWM Control Valve

Included with every GX5 pump is AgXcel’s custom built hydraulic PWM valve, designed to perform under the most demanding environments. The PWM hydraulic valve is designed for both closed center and open center systems and can be tuned for either configuration with a simple valve adjustment. Additionally, the PWM valve can also be configured for power beyond systems when valve remotes on the tractor are limited. The PWM also has a built in manual override control that you simply turn and lift the manual override to check for proper hydraulic connections a great feature for ensuring proper hydraulic flow.

• Low Maintenance
• 3 to 6 Headed Positive Displacement Pump
• Minimal Hydraulic Oil Usage (.5 – 3.2 GPM) for LFP80 in furrow setups
• High Pressure Capabilities
• Minimal to Zero Pulsation Allowing vApplyHD modules to maintain steady and consistent flow
  • LFP80 RANGE .5 – 18 GPM
  • LFP120 RANGE 1 – 28 GPM
  • LFP160 RANGE 5 – 35 GPM
  • LFP250 RANGE 5 – 55 GPM
• Blueflex Technology – Long-life Diaphragms for resistance to spraying chemicals and aggressive liquid fertilizers

NOTE: All AgXcel GX5 systems utilize the AgXcel Hyd PWM 10 GPM valve.

HEAVY DUTY & LONG LIFE

AgXcel Diaphragm Pumps have introduced an innovative diaphragm material called BLUEFLEX, designed by AR which marks a new era in the diaphragm pump sector. If you work in the agricultural or industrial spraying sector, this material establishes a new benchmark for diaphragm durability under the toughest working conditions. First intensive life testing was conducted at AR labs and then at AgXcel; followed up with extensive real-world field testing. From weed killers, fungicides, pesticides, liquid fertilizers to some of the toughest to handle liquids and aggressive chemicals, we believe that AR has come up with the best performing diaphragm material currently available on the market. The diaphragms have a special shape which was developed using proprietary technology in fluid dynamics. All AgXcel pumps can be fitted with the BLUEFLEX diaphragms, as we have the complete BLUEFLEX diaphragm range from the lowest flow pump to the highest flow pump. An additional important benefit is that each diaphragm has a date code on the liquid side of the diaphragm. This is an industry FIRST. It allows us to track and identify the production lot of the diaphragms, by year and by month. For all the above reasons, you owe it to yourself to put the BLUEFLEX diaphragms to the test. For all those especially demanding crop protection jobs, or for transferring aggressive chemicals or for disinfestation, go with the BLUEFLEX diaphragms that are a step ahead. Go beyond your expectations with BLUEFLEX.

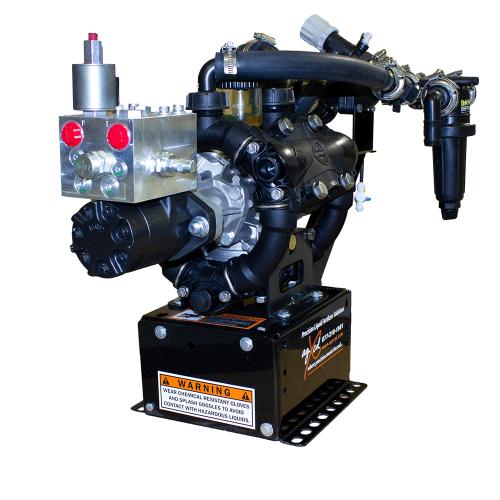

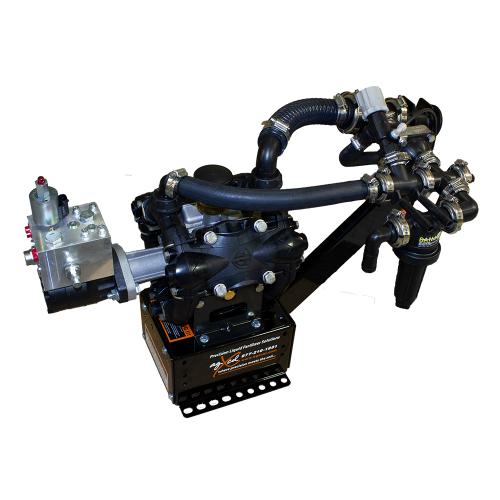

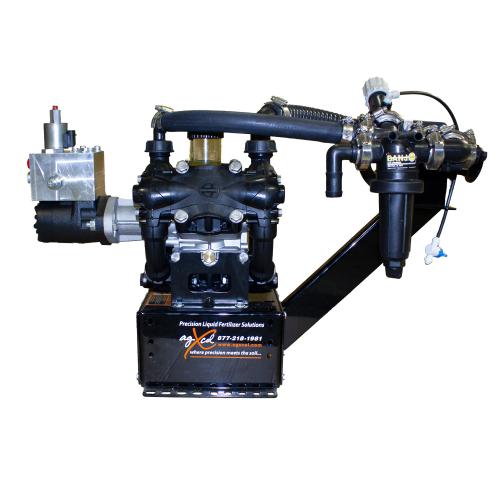

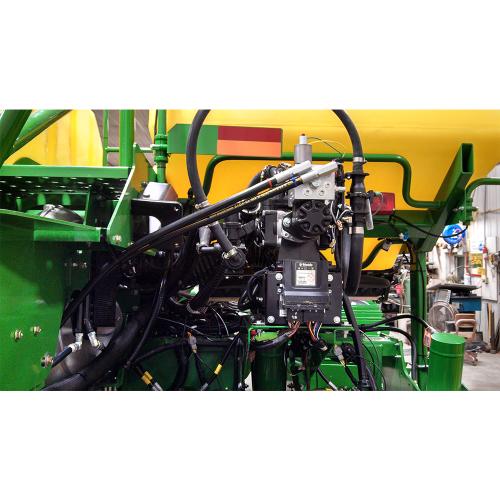

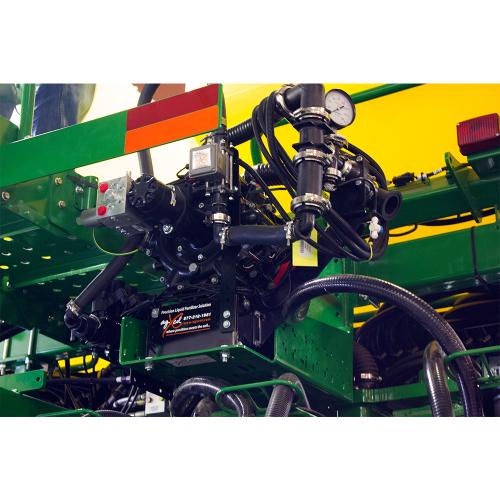

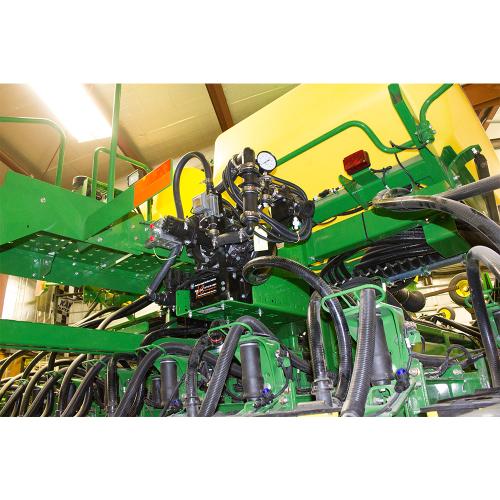

AgXcel GX5 Hydraulic Diaphragm Pump Solution

Here are a few more features of the GX5 diaphragm pump

• Self Priming Pumps, some are low pressure pumps with low flow rates; others are capable of higher flow rates, dependent on the effective working diameter of the diaphragm and its stroke length. They can handle sludge and slurries with a relatively high amount of grit and solid content.
• Suitable for discharge pressure up to 1,200 bar
• Extended dry run periods before damage could occur
• Are superior in handling high viscous liquids

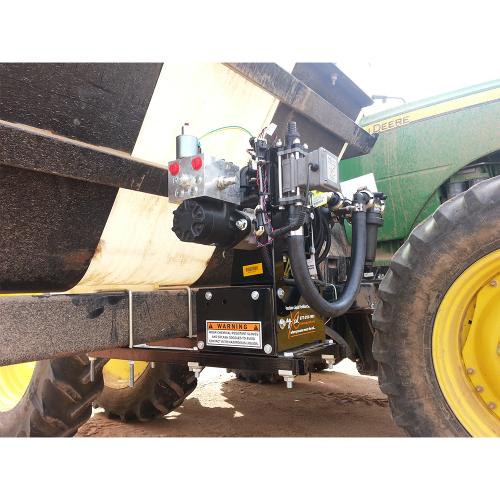

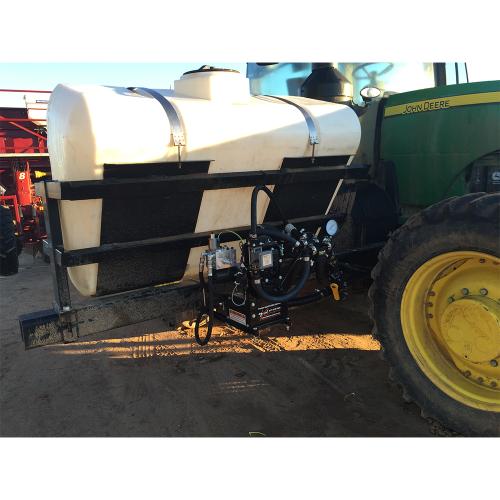

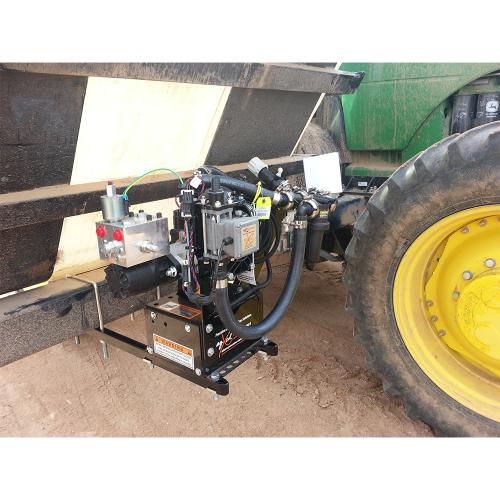

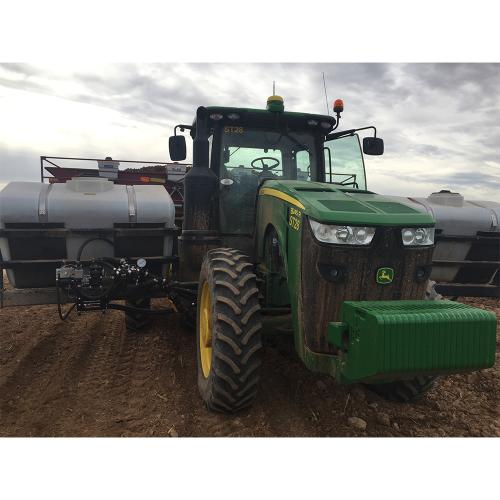

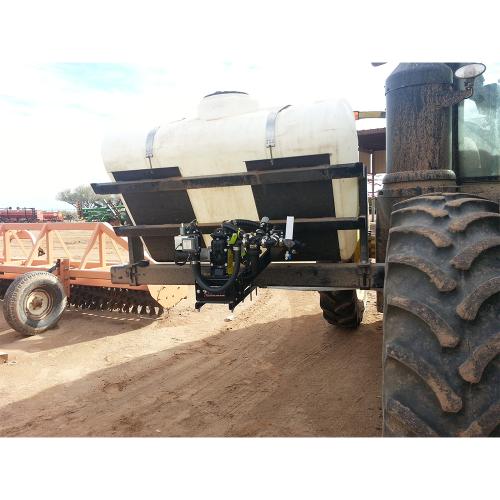

• When the GX5 is mounted on an liquid cart or pull cart, the GX5 will easily draw liquid to supply even the highest demands for liquid placement on any implement
• Simple Installation – The GX5 pump is completely assembled at the factory to make your installation process a breeze. Optional features like bypass agitation, pressure transducer kit and optional mounting brackets.

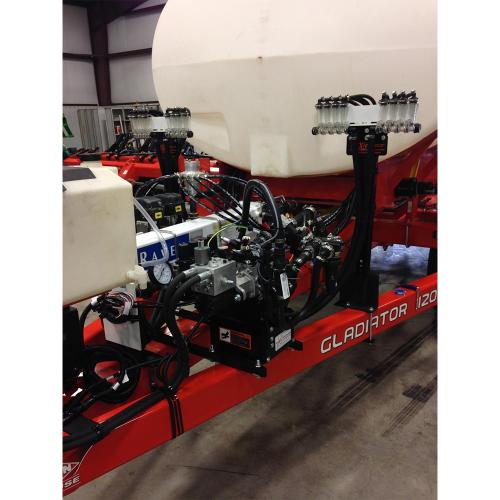

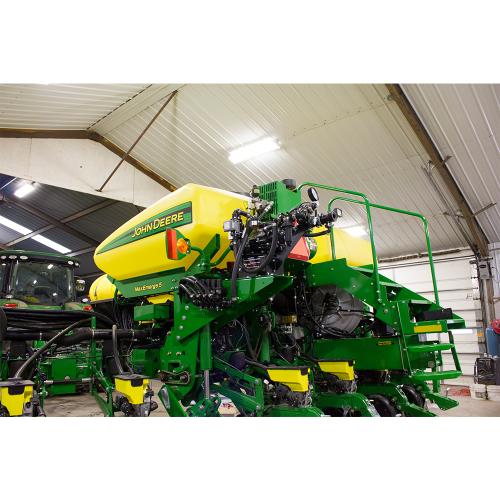

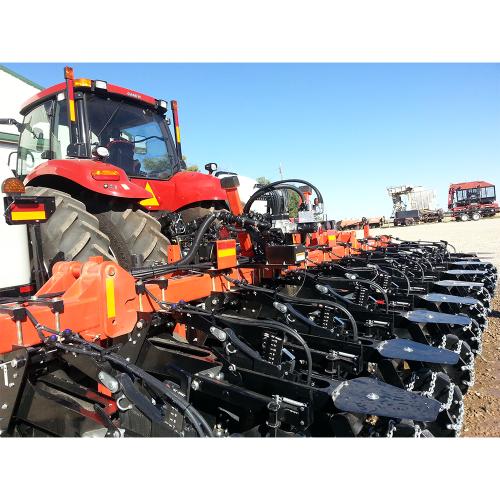

The AgXcel GX5 PWM hydraulic system has been utilized in various application environments like 2×2 application, strip till application, side dress just to name a few. As with all AgXcel solutions, the GX5 integrates seamlessly into all major OEM controllers or can be managed with the AgXcel AutoX compact controller or GX8 ISOBUS controller.
